Wheel alignment equipment is a diagnostic system used to measure a vehicle’s wheel angles. Its main purpose is to check whether the wheels point in the correct direction. Common measurements include toe, camber, and caster. Some systems also measure steering-axis inclination and thrust angle. Sensors or targets attach to the wheels, while a computer records their positions.

The equipment helps technicians compare current readings with approved vehicle specifications. If the toe angle is incorrect, the tires may scrub across the road surface. This can create uneven wear along the tread edges. Incorrect camber may cause one side of a tire to wear faster. Poor caster settings can affect steering stability and the vehicle’s ability to return after a turn.

Accuracy depends on preparation. The vehicle should sit on a level alignment lift, with correct tire pressure and no unnecessary load. A technician usually checks worn steering parts before adjusting anything. Otherwise, the machine may show accurate numbers but hide the real fault. The process is not flawless. A dirty wheel clamp, loose sensor, or damaged rim can influence the reading. Careful inspection still matters. During adjustment, the technician turns specified components and confirms the measurements again. Small changes can alter several angles at once, so rushed work deserves a second look.

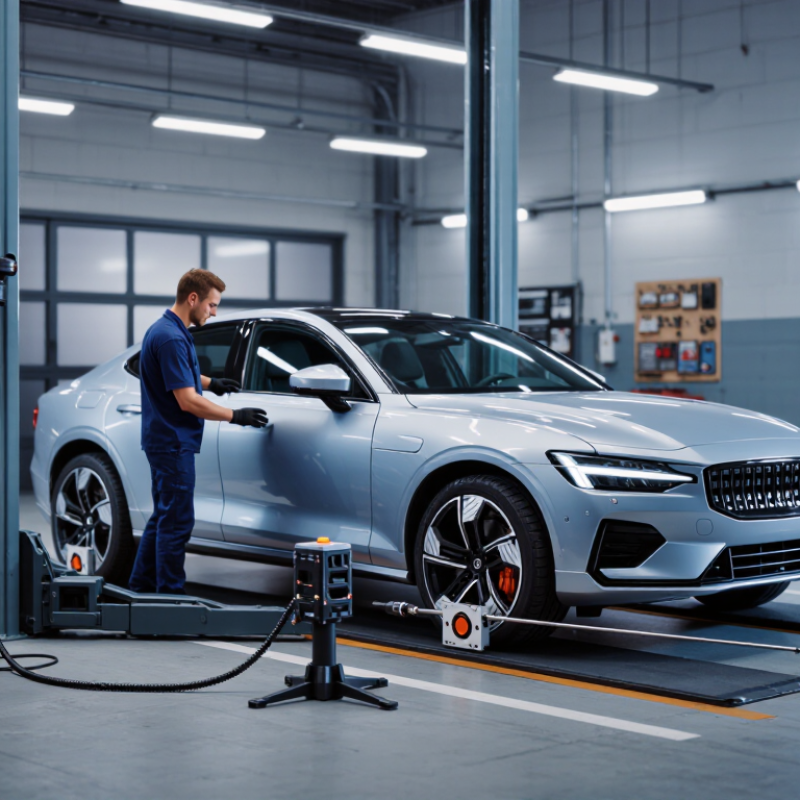

What Is Wheel Alignment Equipment and How Does It Work?

Main Components and Measurement Functions

Technicians first compensate for wheel runout, then place the vehicle on level turn plates. The equipment records steering movement and compares measured angles with vehicle specifications. The U.S. Department of Energy states that properly inflated tires can improve fuel economy by up to 3%. Alignment cannot replace inflation checks, but both affect tire performance and operating cost. A machine can produce precise numbers. A rushed setup can still mislead. Dirty rims, uneven loading, or worn suspension parts may distort the reading. That limitation is easy to overlook. Good practice requires a second inspection before adjustment.

Wheel alignment equipment measures how each wheel sits against the road and the vehicle’s centerline. It commonly uses sensor heads, targets, turn plates, and a computer display. The equipment checks toe, camber, and caster angles. Each measurement affects tire wear, steering feel, and vehicle stability.

The procedure starts with a careful inspection. I check tire pressure, tread condition, wheel bearings, suspension joints, and ride height. Damaged parts can make alignment readings unreliable.

The vehicle then rests on a level alignment lift, with the steering wheel centered and the parking brake released. I mount the sensors securely and compensate for wheel runout by rolling the vehicle slightly. This removes small measurement errors.

Next, I compare the live readings with the vehicle maker’s specifications. Toe usually requires adjustment at the steering linkage. Camber may use approved adjustment points, while caster often changes through suspension settings.

I adjust one side at a time and watch the display after every movement. Small turns can create large changes. A machine may show precise numbers, but neglected bushings can still distort the result.

I once trusted a quick reading and missed a loose joint, so inspection deserves patience.

After tightening all fasteners, I center the steering wheel, recheck every angle, and perform a controlled road test. The vehicle should track straight without pulling or an off-center wheel.
